Article number

Description

Packing

Model

Order: 1

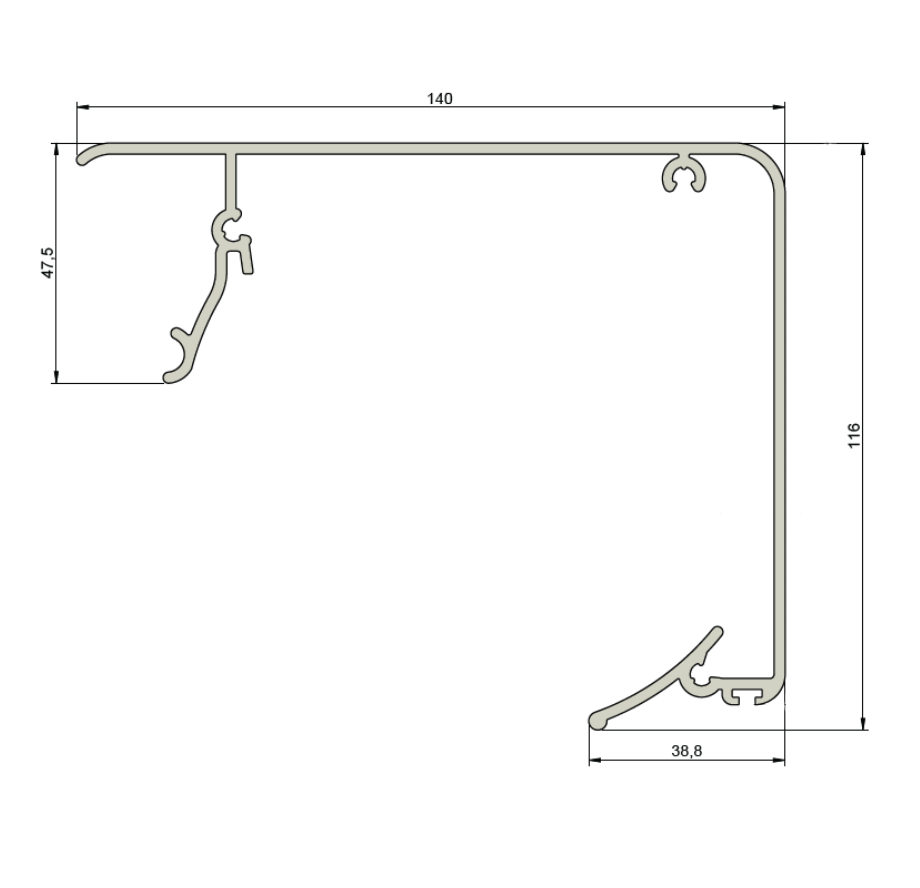

6293400-000
TOP COVER FOLD.ARM JDB 4,0M1 PLAIN
by 4,00m
Mill finish
6293404-000
TOP COVER FOLD.ARM JDB 5,0M1 PLAIN
by 5,00m
Mill finish
6293406-000
TOP COVER FOLD.ARM JDB 5,5M1 PLAIN
by 5,50m
Mill finish
6293408-000
TOP COVER FOLD.ARM JDB 6,0M1 PLAIN
by 6,00m
Mill finish
6293410-000
TOP COVER FOLD.ARM JDB 6,5M1 PLAIN
by 6,50m
Mill finish
6293400-006
TOP COVER FOLD.ARM JDB 4,0M1 9010
by 4,00m
Ral 9010 Pure white
6293404-006
TOP COVER FOLD.ARM JDB 5,0M1 9010
by 5,00m
Ral 9010 Pure white
6293406-006
TOP COVER FOLD.ARM JDB 5,5M1 9010
by 5,50m
Ral 9010 Pure white
6293408-006
TOP COVER FOLD.ARM JDB 6,0M1 9010
by 6,00m
Ral 9010 Pure white
6293410-006
TOP COVER FOLD.ARM JDB 6,5M1 9010
by 6,50m
Ral 9010 Pure white
6293400-755
TOP COVER FOLD.ARM JDB 4,0M1 7016 STR.
by 4,00m
Ral 7016 Anthracite grey structure
6293404-755
TOP COVER FOLD.ARM JDB 5,0M1 7016 STR.
by 5,00m
Ral 7016 Anthracite grey structure
6293406-755
TOP COVER FOLD.ARM JDB 5,5M1 7016 STR.
by 5,50m
Ral 7016 Anthracite grey structure
6293408-755
TOP COVER FOLD.ARM JDB 6,0M1 7016 STR.
by 6,00m
Ral 7016 Anthracite grey structure
6293410-755
TOP COVER FOLD.ARM JDB 6,5M1 7016 STR.
by 6,50m
Ral 7016 Anthracite grey structure
6293400-900
TOP COVER FOLD.ARM JDB 4,0M1 9005 STR.
by 4,00m
Ral 9005 Black textured
6293404-900
TOP COVER FOLD ARM JDB 5.0M1 9005 STR
by 5,00m
Ral 9005 Black textured
6293408-900
TOP COVER FOLD.ARM JDB 6,0M1 9005 STR.
by 6,00m
Ral 9005 Black textured
6293410-900
TOP COVER FOLD.ARM JDB 6,5M1 9005 STR.
by 6,50m
Ral 9005 Black textured
Order: 2

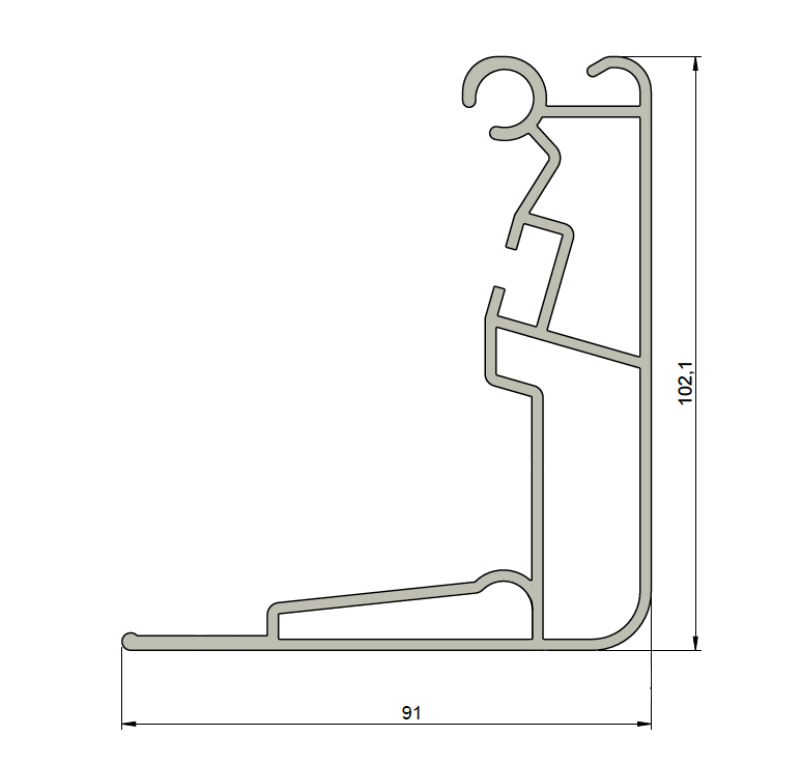

6293240-000
REAR COVER BELLA 4.0 M PLAIN
by 4,00m
Mill finish
6293244-000
REAR COVER BELLA 4.0 M PLAIN
by 5,00m
Mill finish
6293246-000
REAR COVER BELLA 5.5 M PLAIN
by 5,50m
Mill finish
6293248-000
REAR COVER BELLA 6.0 M PLAIN
by 6,00m
Mill finish
6293250-000
REAR COVER BELLA 6.5 M PLAIN
by 6,50m
Mill finish
6293240-006
REAR COVER BELLA 4.0 M 9010 WHITE
by 4,00m
Ral 9010 Pure white
6293244-006
REAR COVER BELLA 5.0 M 9010 WHITE
by 5,00m
Ral 9010 Pure white
6293246-006
REAR COVER BELLA 5.5 M 9010 WHITE
by 5,50m
Ral 9010 Pure white
6293248-006
REAR COVER BELLA 6.0 M 9010 WHITE
by 6,00m
Ral 9010 Pure white
6293250-006
REAR COVER BELLA 6.5 M 9010 WHITE
by 6,50m
Ral 9010 Pure white
6293240-755
REAR COVER BELLA 4.0 M 7016 STR.
by 4,00m
Ral 7016 Anthracite grey structure
6293244-755
REAR COVER BELLA 5.0 M 7016 STR.
by 5,00m
Ral 7016 Anthracite grey structure
6293246-755
REAR COVER BELLA 5.5 M 7016 STR.
by 5,50m
Ral 7016 Anthracite grey structure
6293248-755
REAR COVER BELLA 6.0 M 7016 STR.
by 6,00m
Ral 7016 Anthracite grey structure
6293250-755
REAR COVER BELLA 6.5 M 7016 STR.
by 6,50m
Ral 7016 Anthracite grey structure
6293240-900
REAR COVER BELLA 4,0M1 9005 STR.
by 4,00m
Ral 9005 Black textured
6293244-900
REAR COVER BELLA 5.0 M 9005 STR.
by 5,00m
Ral 9005 Black textured
6293248-900
REAR COVER BELLA 6,0M1 9005 STR.
by 6,00m
Ral 9005 Black textured
6293250-900
REAR COVER BELLA 6,5M1 9005 STR.
by 6,50m
Ral 9005 Black textured
Order: 3

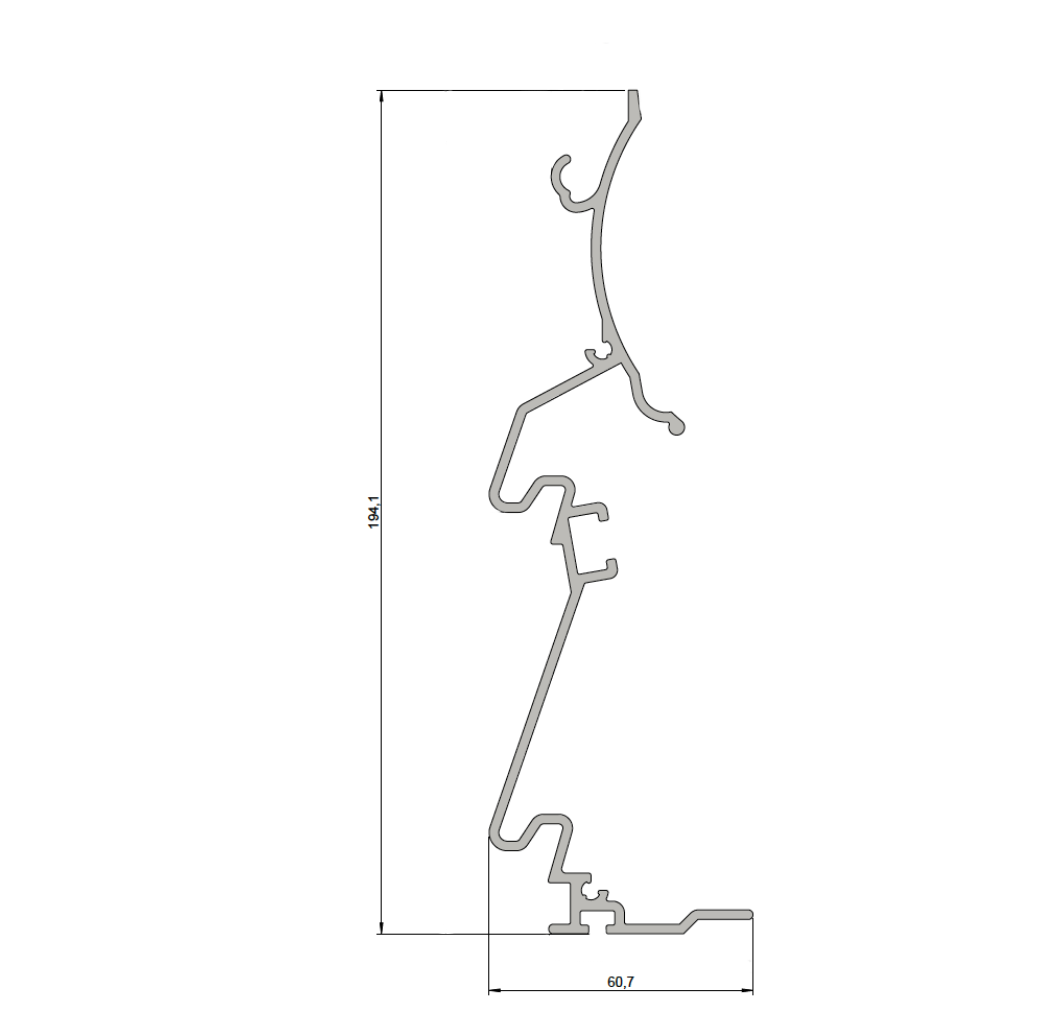

6293420-000
FRONT PROFILE JDB 4,0M1 PLAIN
by 4,00m
Mill finish
6293424-000
FRONT PROFILE JDB 5,0M1 PLAIN
by 5,00m
Mill finish
6293426-000
FRONT PROFILE JDB 5,5M1 PLAIN
by 5,50m
Mill finish
6293428-000
FRONT PROFILE JDB 6,0M1 PLAIN
by 6,00m
Mill finish
6293430-000
FRONT PROFILE JDB 6,5M1 PLAIN
by 6,50m
Mill finish
6293420-006
FRONT PROFILE JDB 4,0M1 9010
by 4,00m
Ral 9010 Pure white
6293424-006
FRONT PROFILE JDB 5,0M1 9010
by 5,00m
Ral 9010 Pure white
6293426-006
FRONT PROFILE JDB 5,5M1 9010
by 5,50m
Ral 9010 Pure white
6293428-006
FRONT PROFILE JDB 6,0M1 9010
by 6,00m
Ral 9010 Pure white
6293430-006
FRONT PROFILE JDB 6,5M1 9010
by 6,50m
Ral 9010 Pure white
6293420-755
FRONT PROFILE JDB 4,0M1 7016 STR.
by 4,00m
Ral 7016 Anthracite grey structure
6293424-755
FRONT PROFILE JDB 5,0M1 7016 STR.
by 5,00m
Ral 7016 Anthracite grey structure
6293426-755
FRONT PROFILE JDB 5,5M1 7016 STR.
by 5,50m
Ral 7016 Anthracite grey structure
6293428-755
FRONT PROFILE JDB 6,0M1 7016 STR.
by 6,00m
Ral 7016 Anthracite grey structure
6293430-755
FRONT PROFILE JDB 6,5M1 7016 STR.
by 6,50m
Ral 7016 Anthracite grey structure
6293420-900
FRONT PROFILE JDB 4.0M1 9005 STR.
by 4,00m
Ral 9005 Black textured
6293424-900
FRONT PROFILE JDB 5.5M1 9005 STR.
by 5,00m
Ral 9005 Black textured
6293428-900
FRONT PROFILE JDB 6.0M1 9005 STR.
by 6,00m
Ral 9005 Black textured
6293430-900
FRONT PROFILE JDB 6.5M1 9005 STR.
by 6,50m
Ral 9005 Black textured
Order: 4
4211440-000
INSERT DRAIN BELLA 5 M W/SELF-ADH.STRIP
by 5,00m
Grey
Order: 5
6253078-000
STEEL TUBE 78X1.25 MM 4.0 M SINC-PL
by 4,00m
Zinc-plated
6253079-000
STEEL TUBE 78X1.25 MM 4.5 M SINC-PL.
by 4,50m
Zinc-plated
6253080-000
STEEL TUBE 78X1.25 MM 5.0 M SINC-PL.
by 5,00m
Zinc-plated
6253081-000
STEEL TUBE 78X1.25 MM 5.5 M SINC-PL.
by 5,50m
Zinc-plated
6253083-000
STEEL TUBE 78X1.25 MM 6.0 M SINC-PL.
by 6,00m
Zinc-plated
6253084-000
STEEL TUBE 78X1.25 MM 6.5 M SINC-PL.
by 6,50m
Zinc-plated
6253086-000
STEEL TUBE 78X1.25 MM 7.0 M SINC-PL.
by 7,00m
Zinc-plated
6253087-000
STEEL TUBE 78X1.25 MM 7.5 M SINC-PL.
by 7,50m
Zinc-plated
6253078-008
STEEL TUBE 78X1.25 MM 4.0M1 7035 GREY
by 4,00m
Ral 7035 Light grey
6253079-008
STEEL TUBE 78X1.25 MM 4.0M1 7035 GREY
by 4,50m
Ral 7035 Light grey
6253080-008
STEEL TUBE 78X1.25 MM 5.0 M 7035 GREY
by 5,00m
Ral 7035 Light grey
6253081-008
STEEL TUBE 78X1.25 MM 5.5 M 7035 GREY
by 5,50m
Ral 7035 Light grey
6253083-008
STEEL TUBE 78X1.25 MM 6.0 M 7035 GREY
by 6,00m
Ral 7035 Light grey
6253084-008
STEEL TUBE 78X1.25 MM 6.5 M 7035 GREY
by 6,50m
Ral 7035 Light grey
6253086-008
STEEL TUBE 78X1.25 MM 7.0 M 7035 GREY
by 7,00m
Ral 7035 Light grey
6253087-008
STEEL TUBE 78X1.25 MM 7.5 M 7035 GREY
by 7,50m
Ral 7035 Light grey
Order: 6
4300100-006
ARMS M+ 150CM LEFT+RIGHT 9010
Ral 9010 Pure white
4300102-006
ARMS M+ 200CM LEFT+RIGHT 9010
Ral 9010 Pure white
4300104-006
ARMS M+ 250CM LEFT+RIGHT 9010
Ral 9010 Pure white
4300108-006
ARMS M+ 300CM LEFT+RIGHT XST 9010
Ral 9010 Pure white
4300106-006
ARMS M+ 250CM LEFT+RIGHT EQUAL XST 9010
Ral 9010 Pure white
4300110-006
ARMS M+ 300CM LEFT+RIGHT EQUAL XST 9010
Ral 9010 Pure white
4300100-755
ARMS M+ 150CM LEFT+RIGHT 7016 STR.
Ral 7016 Anthracite grey structure
4300102-755
ARMS M+ 200CM LEFT+RIGHT 7016 STR.
Ral 7016 Anthracite grey structure
4300104-755
ARMS M+ 250CM LEFT+RIGHT 7016 STR.
Ral 7016 Anthracite grey structure
4300108-755
ARMS M+ 300CM LEFT+RIGHT XST 7016 STR
Ral 7016 Anthracite grey structure
4300106-755
ARMS M+ 250CM LEFT+RIGHT EQUAL XST 7016 STR
Ral 7016 Anthracite grey structure
4300110-755
ARMS M+ 300CM LEFT+RIGHT EQUAL XST 7016 STR
Ral 7016 Anthracite grey structure
4300102-900
ARMS M+ 200CM LEFT+RIGHT 9005 STR
Ral 9005 Black textured
4300104-900
ARMS M+ 250CM LEFT+RIGHT 9005 STR.
Ral 9005 Black textured
4300108-900
ARMS M+ 300CM LEFT+RIGHT XST 9005 STR
Ral 9005 Black textured
Order: 7

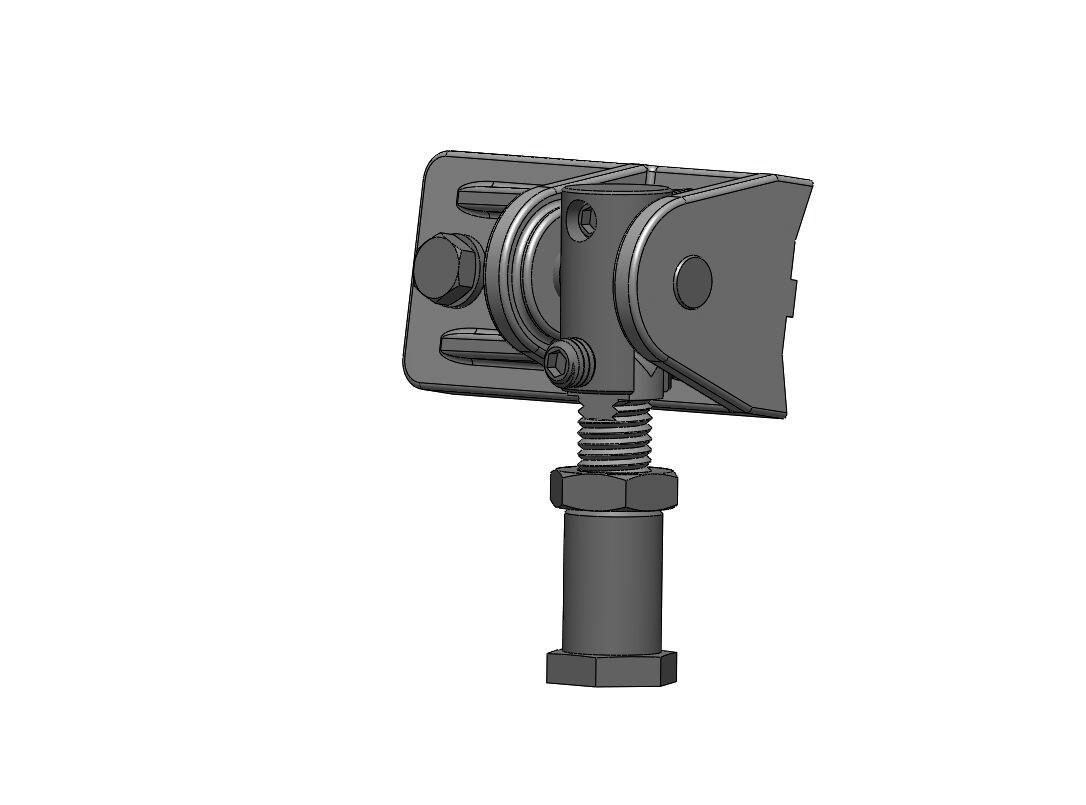

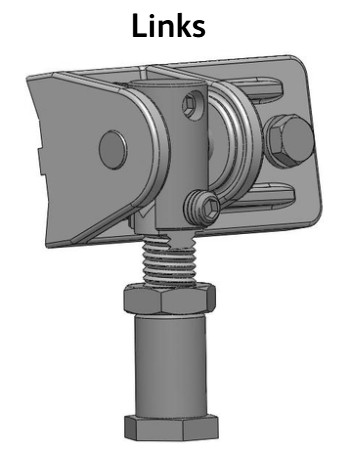

4211470-090
ARM CONNECTOR BELLA LE PLAIN
Mill finish
4211472-090
ARM CONNECTOR BELLA RI PLAIN
Mill finish
4211470-006
ARM CONNECTOR BELLA LE 9010 WHITE
Ral 9010 Pure white
4211472-006
ARM CONNECTOR BELLA RI 9010 WHITE
Ral 9010 Pure white
4211470-755
ARM CONNECTOR BELLA LE 7016 STR.
Ral 7016 Anthracite grey structure
4211472-755
ARM CONNECTOR BELLA RI 7016 STR.
Ral 7016 Anthracite grey structure
4211470-900
ARM CONNECTOR BELLA LE 9005 STR.
Ral 9005 Black textured
4211472-900
ARM CONNECTOR BELLA RI 9005 STR.
Ral 9005 Black textured

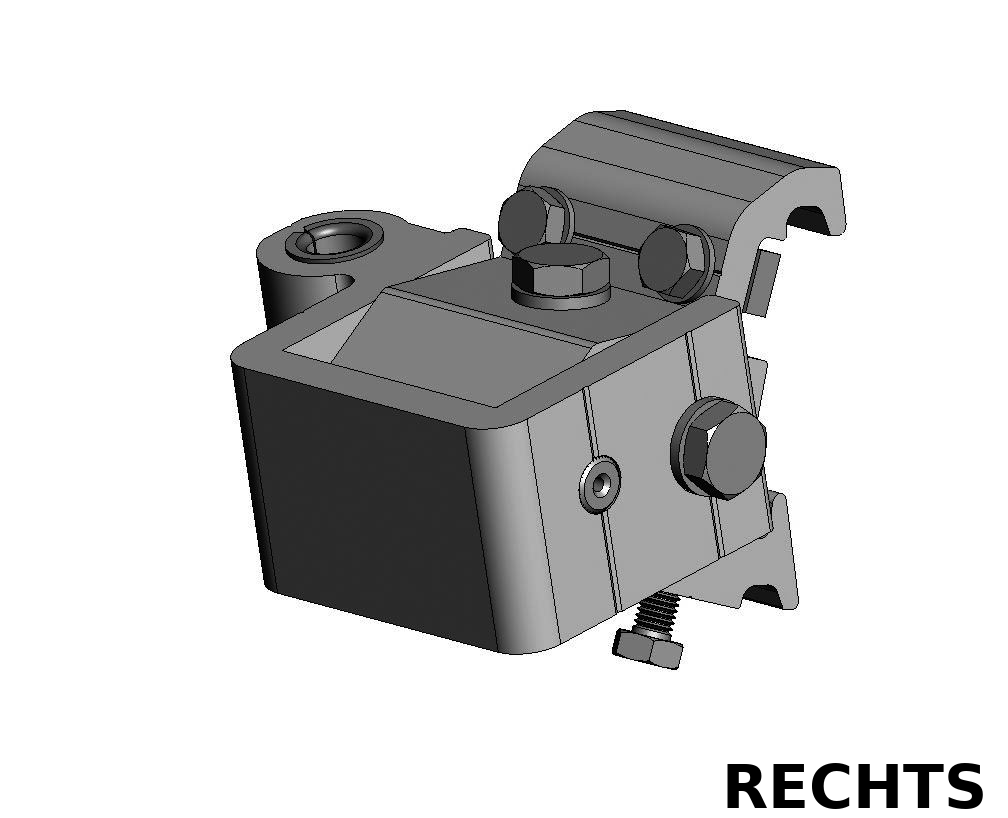

Order: 8
4211041-000
FR.FRAME CONN BELLA LEFT PLAIN
Mill finish
4211043-000
FR.FRAME CONN BELLA RIGHT PLAIN
Mill finish
4211041-008
FR.FRAME CONN BELLA LEFT 7035
Ral 7035 Light grey
4211043-008
FR.FRAME CONN BELLA RIGHT 7035
Ral 7035 Light grey
4211041-006
FR.FRAME CONN BELLA LEFT 9010
Ral 9010 Pure white
4211043-006
FR.FRAME CONN BELLA RIGHT 9010
Ral 9010 Pure white
4211041-755
FR.FRAME CONN BELLA LEFT 7016 STR.
Ral 7016 Anthracite grey structure
4211043-755
FR.FRAME CONN BELLA RIGHT 7016 STR.
Ral 7016 Anthracite grey structure
4211041-900
FR FRAME CONN BELLA LEFT 9005 STR
Ral 9005 Black textured
4211043-900
FR FRAME CONN BELLA RIGHT 9005 STR
Ral 9005 Black textured
Order: 9
4211390-000
MOUNTING SET JDB MILL FINISH
Mill finish
4211390-006
MOUNTING SET JDB 9010
Ral 9010 Pure white
4211390-755
MOUNTING SET JDB 7016 STR.
Ral 7016 Anthracite grey structure
4211390-900
MOUNTING SET JDB 9005 TEXTURED
Ral 9005 Black textured

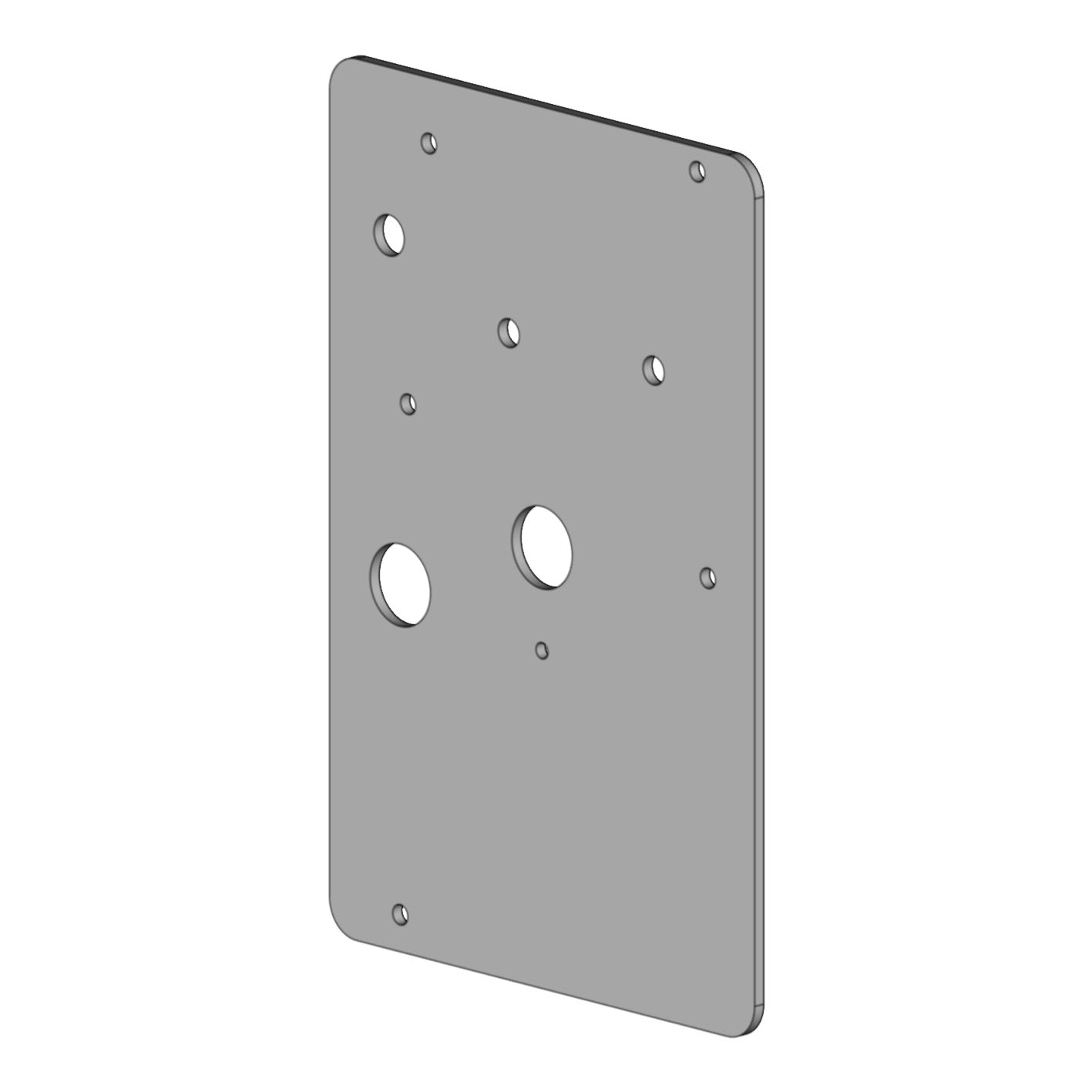

Order: 10
4211392-006
END COVER M PLATE JDB 9010
Ral 9010 Pure white
4211392-755
END COVER M PLATE JDB 7016 STR.
Ral 7016 Anthracite grey structure
4211392-900
END COVER M PLATE JDB 9005 TEXTURED
Ral 9005 Black textured

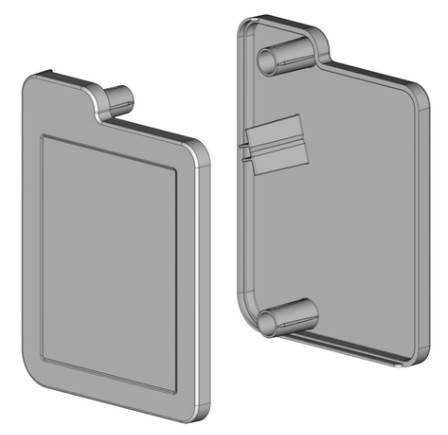

Order: 11
4211396-006
END CAP FRONT PROF. JDB LE 9010
Ral 9010 Pure white
4211398-006
END CAP FRONT PROF. JDB RE 9010
Ral 9010 Pure white
4211396-755
END CAP FRONT PROF. JDB LE 7016 STR.
Ral 7016 Anthracite grey structure
4211398-755
END CAP FRONT PROF. JDB RE 7016 STR.
Ral 7016 Anthracite grey structure
4211396-900
END CAP FRONT PROF. JDB LE 9005
Ral 9005 Black textured
4211398-900
END CAP FRONT PROF. JDB RE 9005
Ral 9005 Black textured

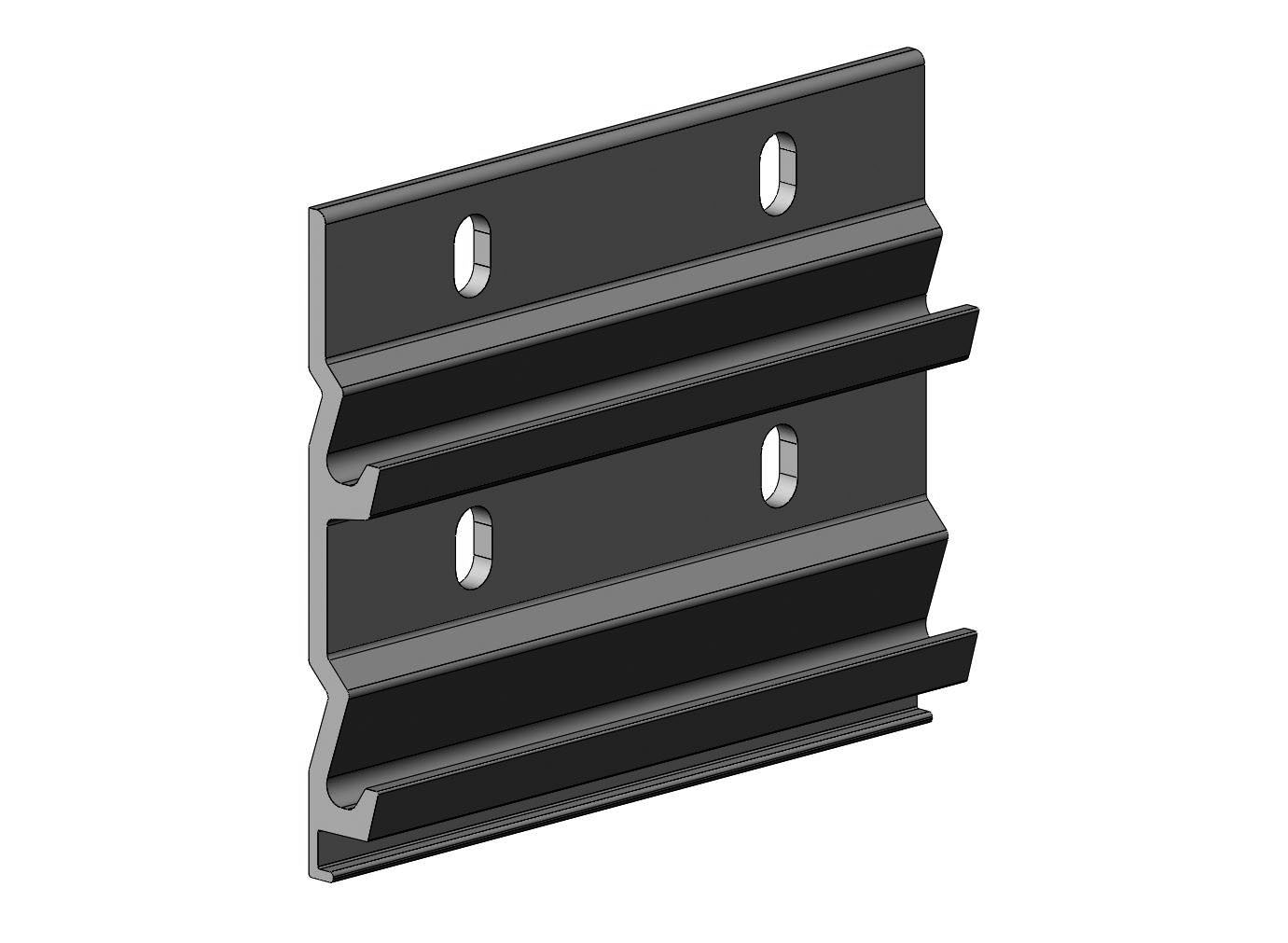

Order: 12
4211424-000
WALL SUPPORT BELLA 95 MM PLAIN
Mill finish
4211424-006
WALL SUPPORT BELLA 95 MM 9010 WHITE
Ral 9010 Pure white
4211424-755
WALL SUPPORT BELLA 95 MM 7016 STR.
Ral 7016 Anthracite grey structure
4211424-900
WALL SUPPORT BELLA 95 MM 9005 STR.
Ral 9005 Black textured

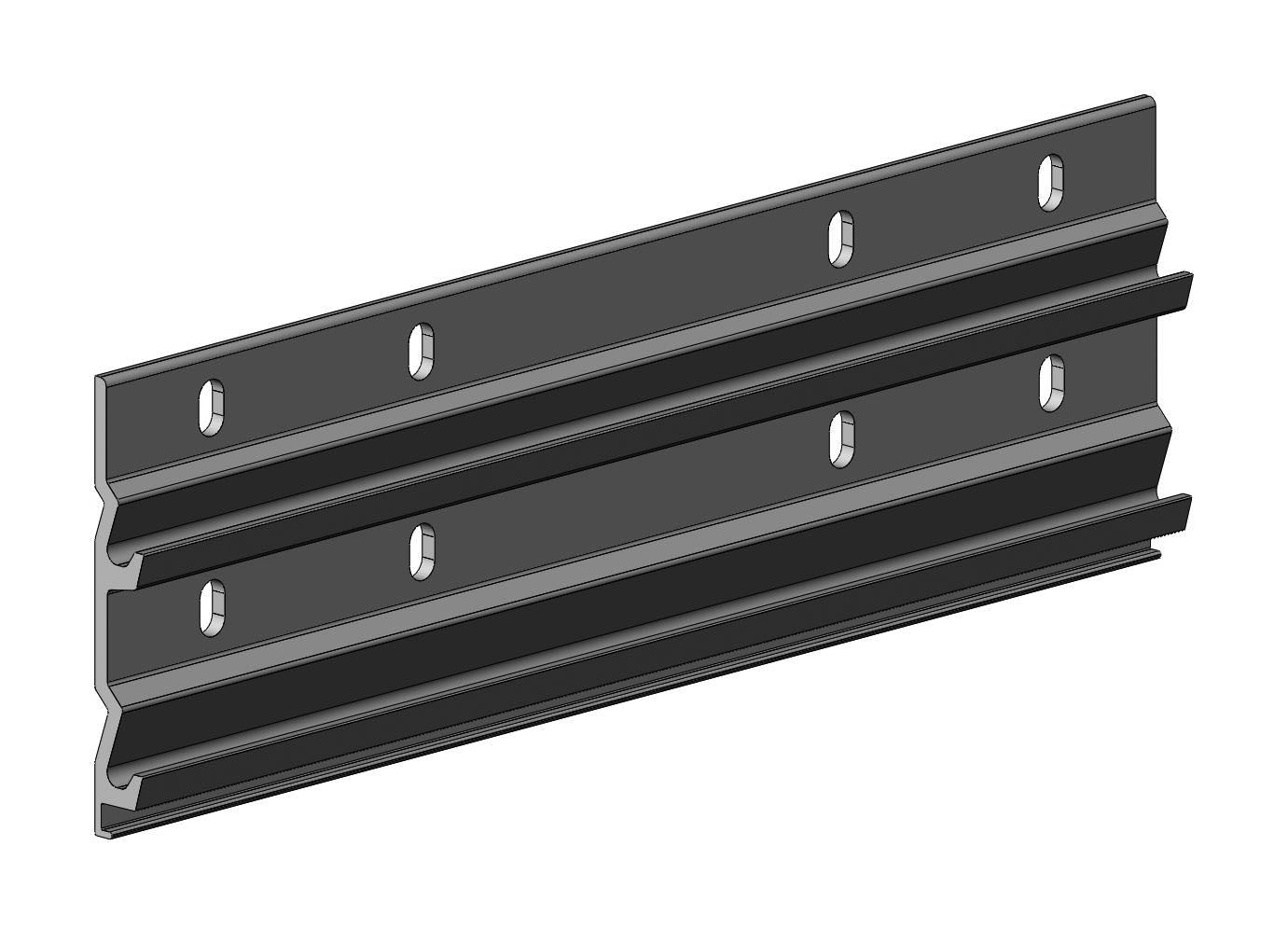

Order: 13
4211420-000
WALL SUPPORT BELLA 195 MM PLAIN
Mill finish
4211420-006
WALL SUPPORT BELLA 195 MM 9010 WHITE
Ral 9010 Pure white
4211420-755
WALL SUPPORT BELLA 195 MM 7016 STR.
Ral 7016 Anthracite grey structure
4211420-900
WALL SUPPORT BELLA 195 MM 9005 STR.
Ral 9005 Black textured
Order: 14
4211421-006
WALL SUPPORT BELLA 500MM 9010 WHITE
Ral 9010 Pure white
4211421-755
WALL SUPPORT BELLA 500 MM 7016 STR.
Ral 7016 Anthracite grey structure
Order: 15
4210498-080
BEARING PIN 12 MM STEEL SINC-PLATED
Deliverd by 10 pieces
Zinc-plated
Order: 16
4470080-068
BEARING BUNG 78 NYL. 1X BEARING COMPLET
Order: 17
4211130-080
SEALING STRIP TOP COVER 50M1 BLACK
by 50m
Black
4211132-080
SEALING STRIP TOP COVER 50M1 WHITE
by 50m
White
Order: 18
4211416-090
GUIDE SUPPORT BELLA PLAIN
Mill finish
4211416-006
GUIDE SUPPORT BELLA 9010 WHITE
Ral 9010 Pure white
4211416-755
GUIDE SUPPORT BELLA ALU 7016 STR.
Ral 7016 Anthracite grey structure
4211416-900
GUIDE SUPPORT BELLA ALU 9005 TEXT
Ral 9005 Black textured
Order: 19
4211418-000
GUIDE-BLOCK BELLA SYNTH. WHITE
Deliverd by 10 pieces
White
4211419-000
GUIDE-BLOCK BELLA SYNTH. BLACK
Deliverd by 10 pieces
Black
Order: 20
4211426-000
CLAMPING STRIP WALL BRACKET BELLA STEEL
Mill finish
4211426-006
CLAMPING STRIP WALL BRACKET BELLA WHITE
Ral 9010 Pure white
4211426-755
CLAMPING STRIP WALL BRACKET BELLA 7016ST
Ral 7016 Anthracite grey structure
4211426-900
CLAMPING STRIP WALL BRACKET BELLA 9005ST
Ral 9005 Black textured
Order: 21
4212000-068
SET WALLSTRIP 550 MM ALU MILL FINISH
Mill finish
4212001-068
SET WALLSTRIP 850 MM ALU MILL FINISH
Mill finish
4212000-008
SET WALLSTRIP 550MM ALU RAL 7035
Ral 7035 Light grey
4212001-008
SET WALLSTRIP 850MM ALU RAL 7035
Ral 7035 Light grey
4212000-006
SET WALLSTRIP 550MM ALU RAL 9010
Ral 9010 Pure white
4212001-006
SET WALLSTRIP 850MM ALU RAL 9010
Ral 9010 Pure white
4212000-901
SET WALLSTRIP 550MM ALU RAL 9001
Ral 9001 Cream
4212001-901
SET WALLSTRIP 850MM ALU RAL 9001
Ral 9001 Cream
4212000-755
SET WALLSTRIP 550MM ALU RAL 7016 TEXT
Ral 7016 Anthracite grey structure
4212001-755
SET WALLSTRIP 850MM ALU RAL 7016 TEXT
Ral 7016 Anthracite grey structure
4212000-900
SET WALLSTRIP 550MM ALU RAL 9005 TEXT
Ral 9005 Black textured
4212001-900
SET WALLSTRIP 850MM ALU RAL 9005 TEXT
Ral 9005 Black textured
Order: 22

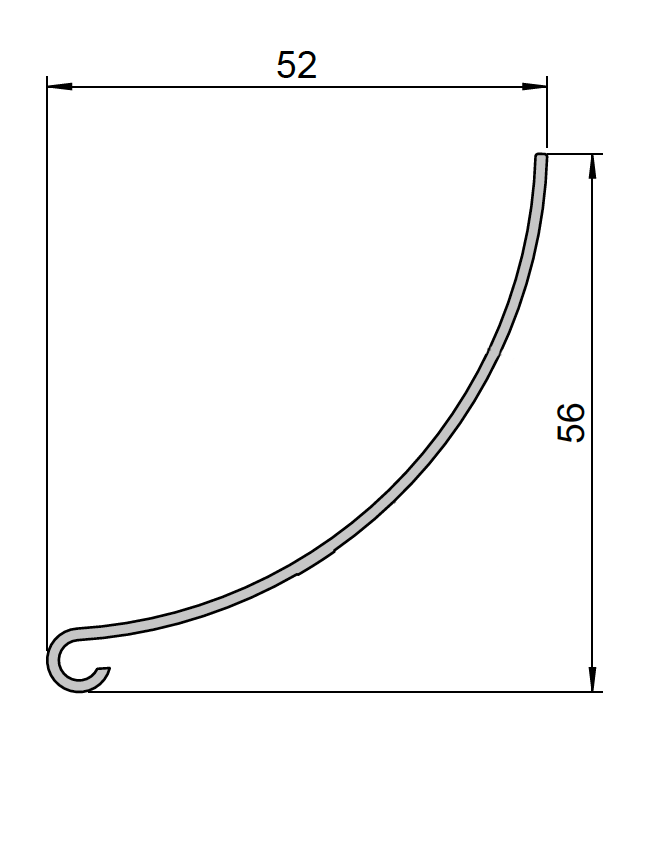

6256050-000
COVER PROF WALLSTRIP ALU 6.0M1 PLAIN
by 6,00m
Mill finish
6256050-008
COVER PROF WALLSTRIP ALU 6.0M1 7035
by 6,00m
Ral 7035 Light grey
6256050-006
COVER PROF WALLSTRIP ALU 6.0M1 9010
by 6,00m
Ral 9010 Pure white
6256050-901
COVER PROF WALLSTRIP ALU 6.0M1 9001
by 6,00m
Ral 9001 Cream
6256050-755
COVER PROF WALLSTRIP ALU 6.0M1 7016 STR.
by 6,00m
Ral 7016 Anthracite grey structure
Order: 23
6256060-000
PROF. WALLSTRIP 6.0M1 ALU MF
by 6,00m
Mill finish
6256060-008
PROF. WALLSTRIP 6.0M1 ALU 7035
by 6,00m
Ral 7035 Light grey
6256060-006
PROF. WALLSTRIP 6.0M1 ALU 9010
by 6,00m
Ral 9010 Pure white
6256060-901
PROF. WALLSTRIP 6.0M1 ALU 9001
by 6,00m
Ral 9001 Cream
6256060-755
PROF. WALLSTRIP 6.0M1 ALU 7016 STR
by 6,00m
Ral 7016 Anthracite grey structure
Order: 24
4452074-009
CLAMP STEEL FOR COVER PROFILE ROUND
Zinc-plated
Order: 25
4212002-000
END CAP LE STAINLESS TO ALU WALLSTRIP
Zinc-plated
4212003-000
END CAP RI STAINLESS TO ALU WALLSTRIP
Zinc-plated
Order: 26
4410696-000
SOCKET HEAD SCREW M8X12
Deliverd by 100 pieces
4217135-000
SOCKET HEAD ADJ.SCR. M10X16 DIN916 ST.A2
Zinc-plated
Order: 27
4452090-000
PLATE SCREW 4.2X32 CYL/PH DIN 7981
Deliverd by 100 pieces
Order: 28
4000171-000
TAP BOLT M6X10 DIN933
Deliverd by 100 pieces
Order: 29
4000151-000
SCREW M6X12 CS/PH DIN 965
Deliverd by 100 pieces
Order: 30
4000219-000
SOCKET-HEAD BOLT M10X35 DIN 913 STAINLES
Zinc-plated
Order: 31
4000221-000
SQUARE NUT M10 DIN 557 STAINLESS
Zinc-plated
Order: 32
4211150-000
FLANGED NUT M10 ST.STEEL DIN 6923
Deliverd by 50 pieces
Zinc-plated
Order: 33
4452097-000
DRILLING SCREW 3.5X9.5 ZB.BK/KK D7504SUS
Deliverd by 100 pieces
Order: 17704
4000177-080
CLAMPING PAD WITH SCREW SYNT.
Deliverd by 200 pieces
